Lab 1 - Fibonacci Calculator


Introduction

In this lab, you will be implementing a circuit in VHDL that calculates Fibonacci numbers. Here is the pseudocode that describes the behavior of the circuit:

Input: n (specifies the Fibonacci number to be calculated)
Output: result (the nth Fibonacci number)

// reset values (add any others that you might need)
result = 0;
done = 0;

while(1) {

  // wait for go to start circuit
  while (go == 0);
  done = 0;

  // store input in register
  regN = N;

  // do the Fib calculation
  i = 3;
  x = 1;
  y = 1;
  while (i <= regN)
  {
    temp = x+y;
    x = y;
    y = temp;
    i ++;
  }

  // output result and assert done
  result = y;
  done = 1;

  // wait for go to clear so circuit doesn't constantly repeat
  while (go == 1);
}

You will turnin in your project using e-learning. You should submit both the code and a screenshot of a working simulation. Please do not turn in ISE or Vivado files, only vhd files and screenshots are necessary.

Part 1 - Modeling a controller and datapath (FSM+D)

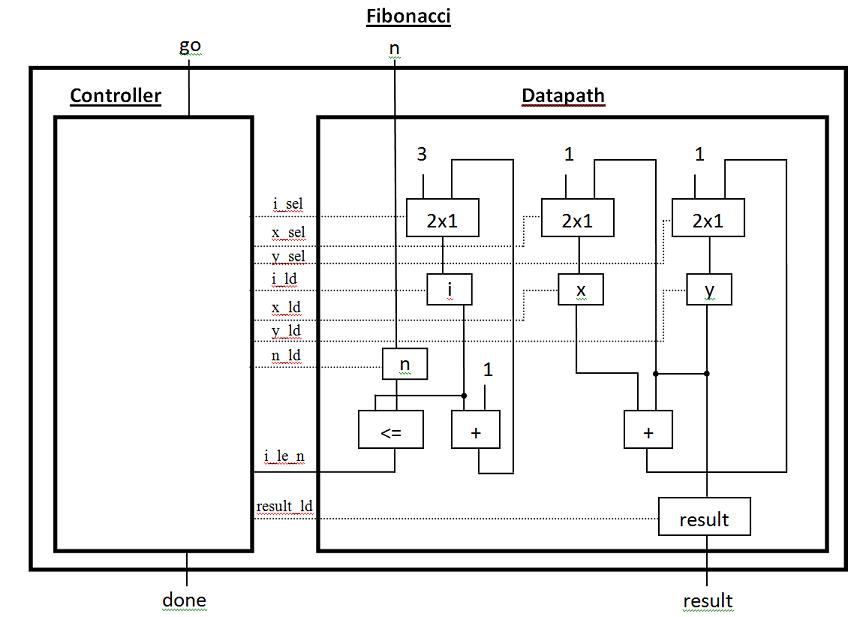

In this part of the lab, you will implement a controller and datapath in VHDL to implement the functionality of the code shown above. A block diagram of the circuit is shown below:

The circuit has 4 inputs: go, n (8-bit), and clock/reset (not shown). There are also 2 outputs: done and result (8-bit). The circuit should initially wait until go is asserted (active high), and then read in input n, control the datapath as needed to generate the nth fibonacci number, and then store the result in the result register that is connected to the output result. After a result has been generated, done should be asserted (active high) until go is set back to 0 and then reasserted (i.e., until the circuit starts again). The circuit should not start calculating another number until go is reset to 0 and then set to 1.

Inside of the <= entity, use the UNSIGNED type (do not use it on the port). See the previous tutorials for examples of how to use UNSIGNED. For all other signals, use the STD_LOGIC or STD_LOGIC_VECTOR type.

The dotted lines between the controller and datapath represent control signals need to control the functionality of the datapath. The control lines for the muxes handle selecting the appropriate input. The control lines for the register specify when values should be loaded. The solid line i_le_n is an output from the datapath that the controller uses to determine if the code has completed.

Your project should have the following entities, implemented in the specified way:

  1. 2x1 mux - behavioral description
  2. 8-bit register with load input - behavioral description (used for n, y, x, and y in the datapath)
  3. 8-bit adder - behavioral description
  4. 8-bit less-than-or-equal comparator - behavioral description
  5. Datapath - structural description using the above entities with the connections shown in the figure (clock and reset are not shown)
  6. Controller - behavioral description of an FSM that controls the datapath. Note that you will have to determine what the FSM should be. (clock and reset are not shown)
  7. Fib - structural description that connects the controller and datapath.
  8. Testbench - A testbench that tests at least 3 different input values for the top-level Fib entity. Although this is the only testbench that is required, you might want to create other testbenches for the other entities.

Note: You can ignore invalid values of n, such as values < 1 or values that result in overflow from the 8-bit registers.

Part 2 - FSMD

In this part of the lab, you will implement another circuit for the same pseudocode, but this time using an FSMD as explained in class and in my VHDL tutorial. The main difference here is that you are not explicity specifying the datapath, and instead are specifying operations that are executed during each stage of the FSM.

For part 2, you will only need 2 entities:

  1. Fib - behavioral FSMD model of pseudocode. The inputs and outputs are the same as in part 1 (go, n, clk, rst, done, and result). The entity should behave the same way as in part one, simply using an FSMD instead of an FSM+D.
  2. Testbench - a testbench for the Fib entity that tests at least 3 inputs.

Extra Credit

Synthesize the circuits from part 1 and part2 using Vivado (or ISE), and compare their areas. Use any device you want as a target, and compare the area using slices or LUTs. Explain the difference in area, if any. This comparison does not have to be detailed. It is mainly intended to get familiar with the synthesis toolflow.
